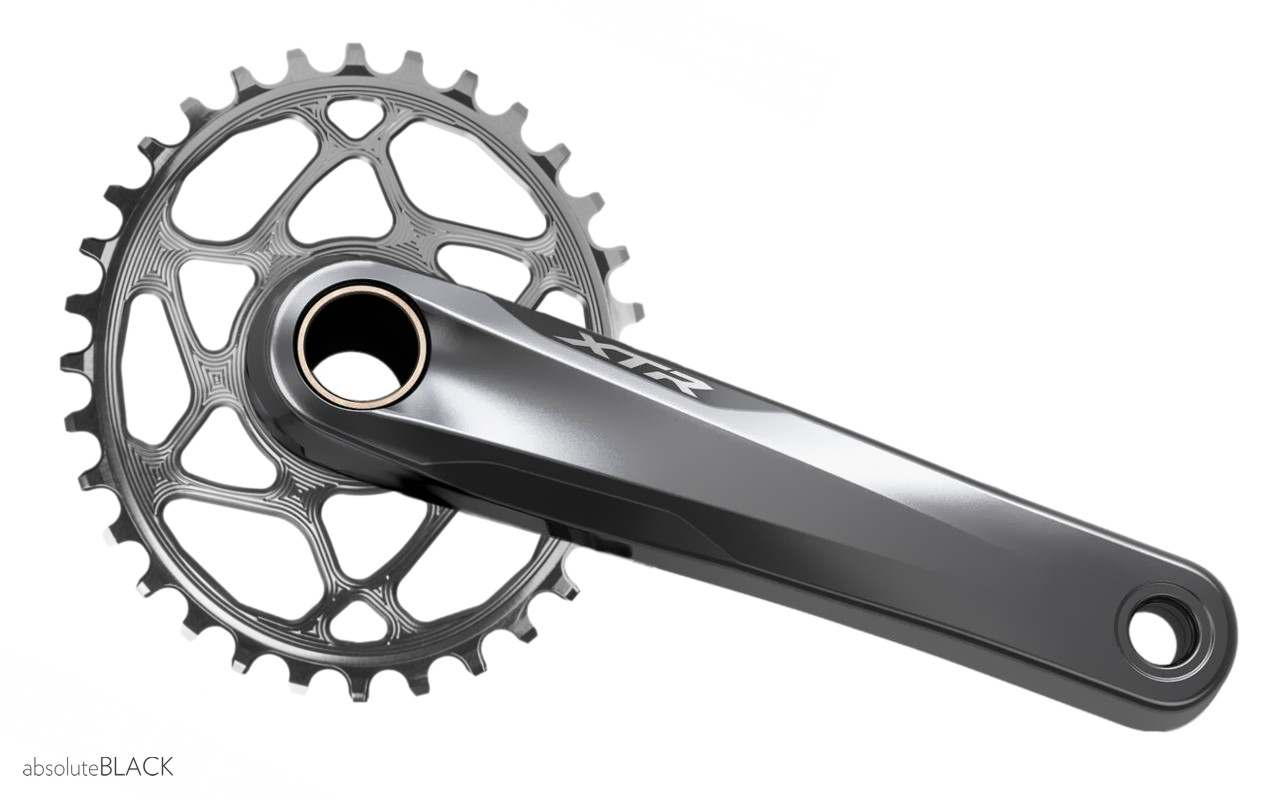

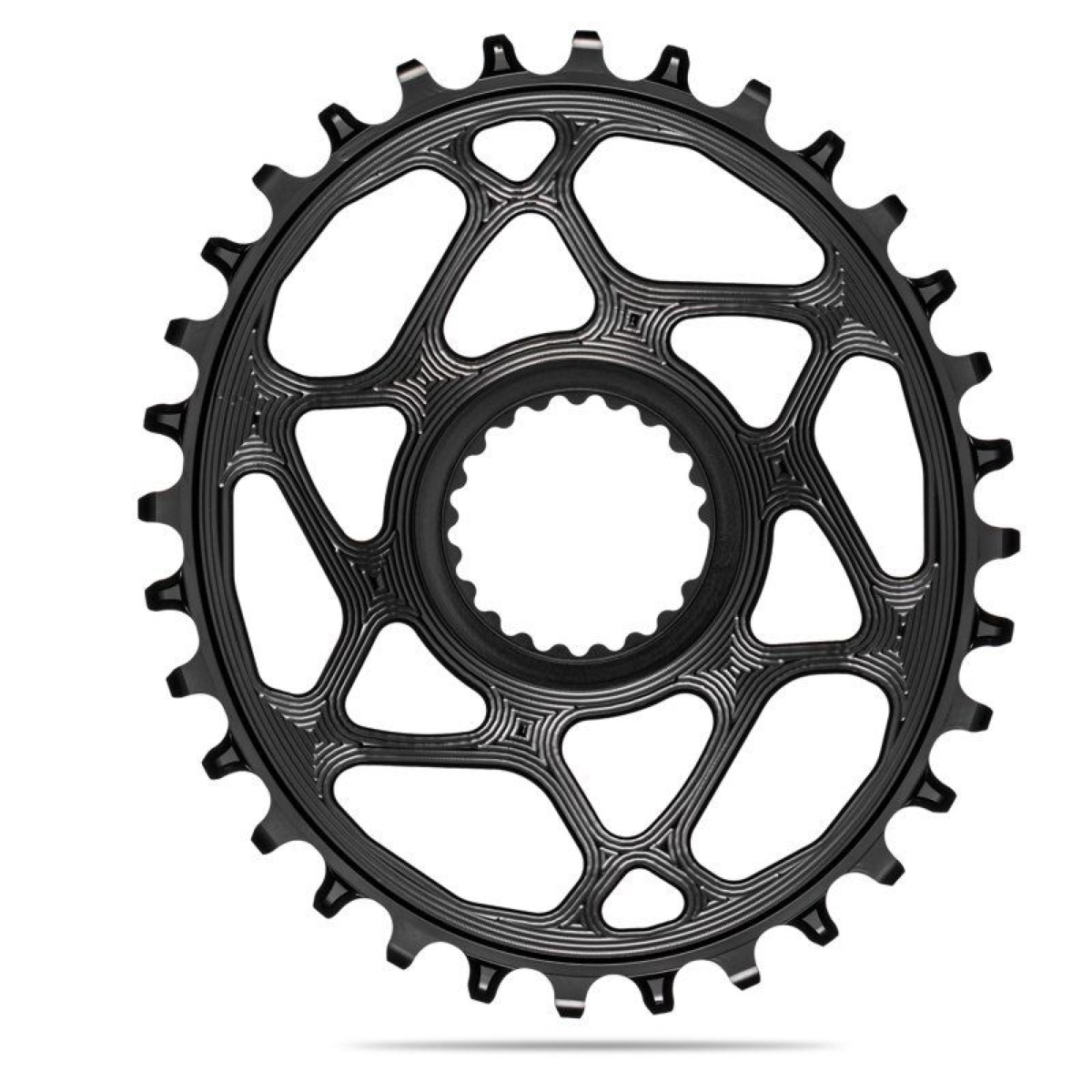

AbsoluteBlack Klinge NW Shimano 12 speed OVAL – Sort – SHDMOVxxBK

Ovale klinger gør dit tråd mere glidende. Tro det (eller lad være), men en rund klinge overfører ikke kraften til dit baghjulet så glat som en Oval klinge. 32T oval klingen har mindste diameter i døde spot (svarende til 30T) og største i spidseffekt zone (svarende til 34T). Det betyder, at du vil performe bedre med en oval 32T klinge i forhold til en rund klinge.

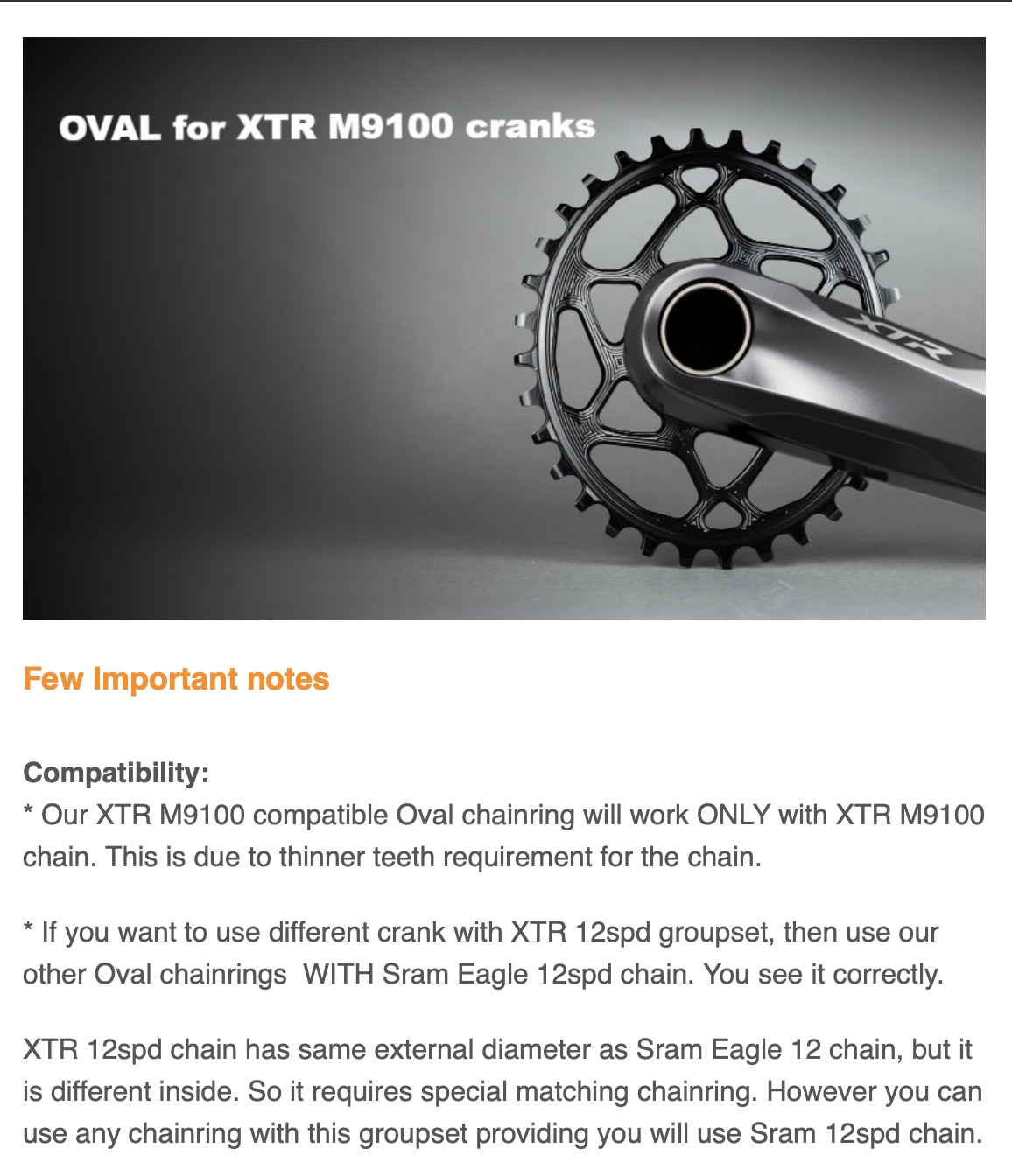

Shimano 12 speed klinge kan KUN køre med Shinamos 12 speed kæde på grund af anden tykkelse på tænderne.

Specifikation

• Materiale: Aluminium 7075T6
• Shimano Direct Mount
• Narrow Wide klinge design
• Anodiseret Type II
• 10-14% ovalitet
• Kædelinie: afhægig af kranksæt, samme off set som orinal klinge

Passer til Shimano kranksæt:

• Shimano XTR M9100
• Shimano XTR M9120
• Shimano XT M8100
• Shimano SLX M7100

It’s a Direct Mount chainring so please use original lockring to mount it on the crank. Always use a new chain with a new chainring

If you wish to check for frame clearance with new oval ring, below you can find measurement of biggest dimension of the oval (tip to tip of tooth):

28T: 127mm ; 30T: 134mm ; 32T: 143mm ; 34T: 151mm

ADVANTAGES OF OUR SPECIAL OVAL CHAINRINGS FOR SHIMANO XTR M9100 :

• We mastered our oval chainrings to perfection, so you can get best possible advantage from the oval/elliptical shape.
• Finest design to provide excellent weight to strength ratio
• One of a kind special oval shape (Patent Pending)
• Greatly improves traction and climbing abilities
• Unique Patent Pending narrow-wide teeth profiles to keep your chain in place for minimum 12 months!
• Special 3D teeth machining for ultimate mud relief decrease wear and noise dramatically
• All rings have built in threads for easy of mounting and reduction in weight
• Superb quality and great look.
• You will ride faster using ovals. If you keep using round ring then others will get quicker.
• You will not “feel” the oval shape at all
• Reduces stress on knees

HOW TO MOUNT ABSOLUTEBLACK OVAL CHAINRING FOR XTR M9100:

Using Hollowtech II BB Removal Tool (like BBB BTL-116 ), carefully open the lockring that holds the chainring on the crank(normal threads). Once the lockring is removed, take off old chainring, re-grease the splines on the crank. Place new oval chainring with convex side to the crank. Chainring/crank has special splines that only fit one way. Close the lockring to 35-50Nm of force. Chainring is only compatible with XTR CN-M9100 chains. Using other chains may cause chain to drop very easily from the chainring due to thinner than usual teeth.

It is ideal for 1x 11 & 12spd and Singlespeeds. Oval (elliptical) chainring does not compromise the work of clutch mechanism in rear derailleur(video at the bottom). It also does not require chain tensioner when using in singlespeed application. Riding out of saddle on the uphill will become more pleasant.

Ovality of the chainring is in range of 10-14% (dependent on size) and feels perfectly round when riding. These chainrings also help you to recover after knee injuries as pedaling becomes smoother and less exhausting. It is the most advanced oval chainring currently on the market.
